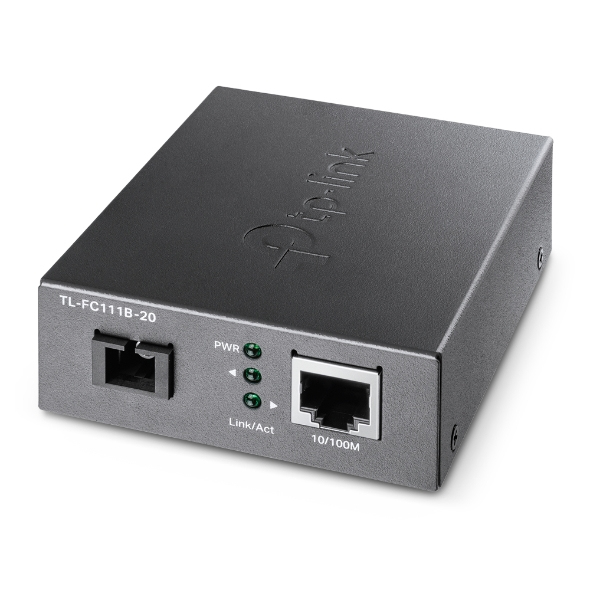

TP-Link Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

TP-Link Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
BrandTP-LinkMPNFC111B-20SKUNETTPL1121

Key specifications

  • Maximum data transfer rate100 Mbit/s
  • Networking standardsIEEE 802.3, IEEE 802.3i, IEEE 802.3x
  • Copper ethernet cabling technology10BASE-T, 100BASE-T
  • Fiber ethernet cabling technology100BASE-FX
  • Data transfer rate100 Mbit/s
  • Flow control supportYes
  • Auto MDI/MDI-XYes
  • Auto-negotiationYes
  • Duplex systemFull, Half
  • Cable types supportedCat3, Cat4, Cat5, Cat5e
View full specifications →
Price in NZD

$33.30 excl. GST

✕ Out of stock

Out of stock

Why buy it here
  • Genuine stock with New Zealand warranty and local support.
  • Free delivery on orders over $99, tracked NZ-wide.
  • Personal or business pricing — switch GST display at the top of any page.
🚚Fast NZ-wide delivery
🔒Secure checkout
↩️30-day easy returns
🧾GST invoice provided

Description

TP-Link Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3x, Copper ethernet cabling technology: 10BASE-T, 100BASE-T. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A

Additional information

Brand

TP-Link
Maximum data transfer rate

100 Mbit/s
Networking standards

IEEE 802.3, IEEE 802.3i, IEEE 802.3x
Copper ethernet cabling technology

10BASE-T, 100BASE-T
Fiber ethernet cabling technology

100BASE-FX
Data transfer rate

100 Mbit/s
Flow control support

Yes
Auto MDI/MDI-X

Yes
Auto-negotiation

Yes
Duplex system

Full, Half
Cable types supported

Cat3, Cat4, Cat5, Cat5e
Maximum transfer distance

20000 m
Fiber mode structure

Single-mode
Fiber cable diameters supported (core/cladding)

9/125 µm
Internal

No
LED indicators

Activity, Link, Power
Product colour

Black
Connectivity technology

Wired
Ethernet LAN (RJ-45) ports

1
Fiber ports quantity

1
Fiber optic connector

SC
Output voltage

5 V
Output current

0.6 A
External power adapter

Yes
Width

94.5 mm
Depth

73 mm
Height

27 mm
Operating temperature (T-T)

0 – 50 °C
Storage temperature (T-T)

-40 – 70 °C
Operating relative humidity (H-H)

10 – 90%
Storage relative humidity (H-H)

5 – 90%
Package width

165 mm
Package depth

204 mm
Package height

65 mm
Package weight

360 g
Compliance certificates

RoHS
Certification

FCC, CE
Harmonized System (HS) code

85176990
